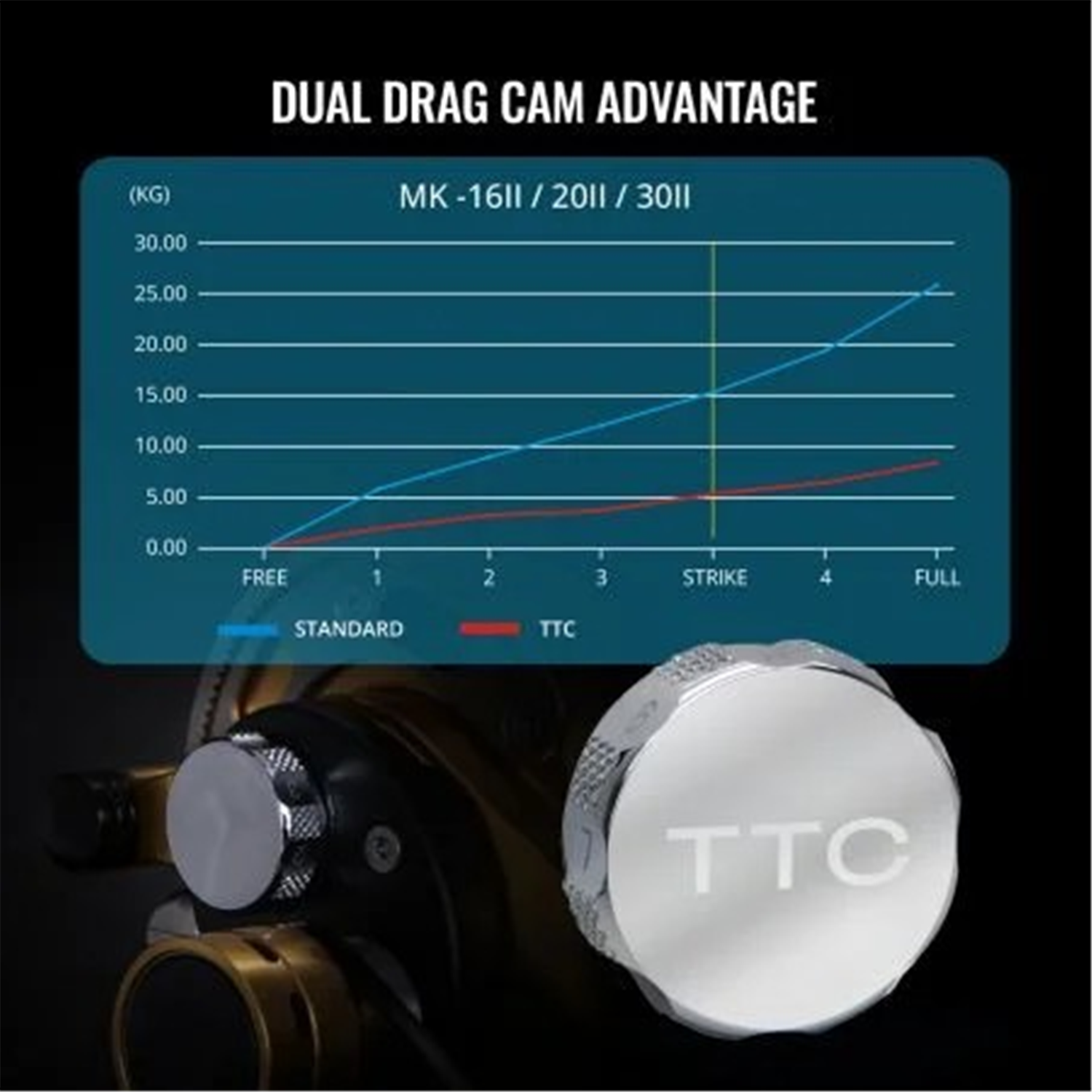

The benchmark just got better! Introducing the all-new Okuma Makaira SEA Gold Dual Drag Cam Advantage: the standard Drag Cam delivers maximum drag power for ultimate stopping strength, while the additional TTC (Traditional Troll Cam) provides a smoother, more refined drag curve for precise trolling performance and fine-tuned control — giving serious anglers the versatility and confidence to take on the toughest game fish.
FEATURES
- Open spool bearings with TSI-301 oil on 10II to 50II size. Increases freespool 2-1/2 times
- All non-spool bearings feature full grease pack for maximum longevity
- 6061-T6 machined aluminum frame with forged sideplates
- 17-4 grade stainless steel gearing

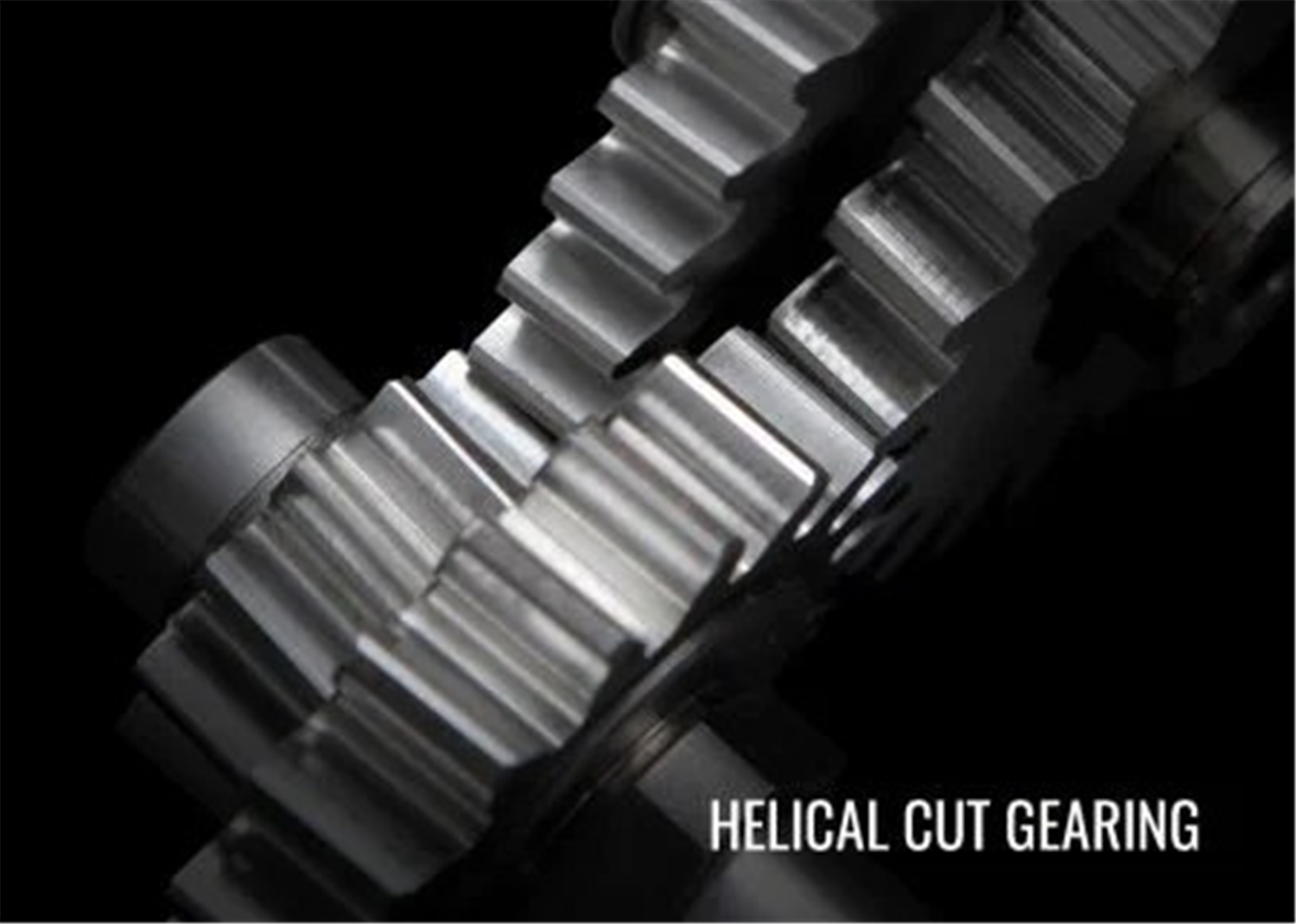

- Helical cut gears for increased torque, smoothness & improved gear meshing

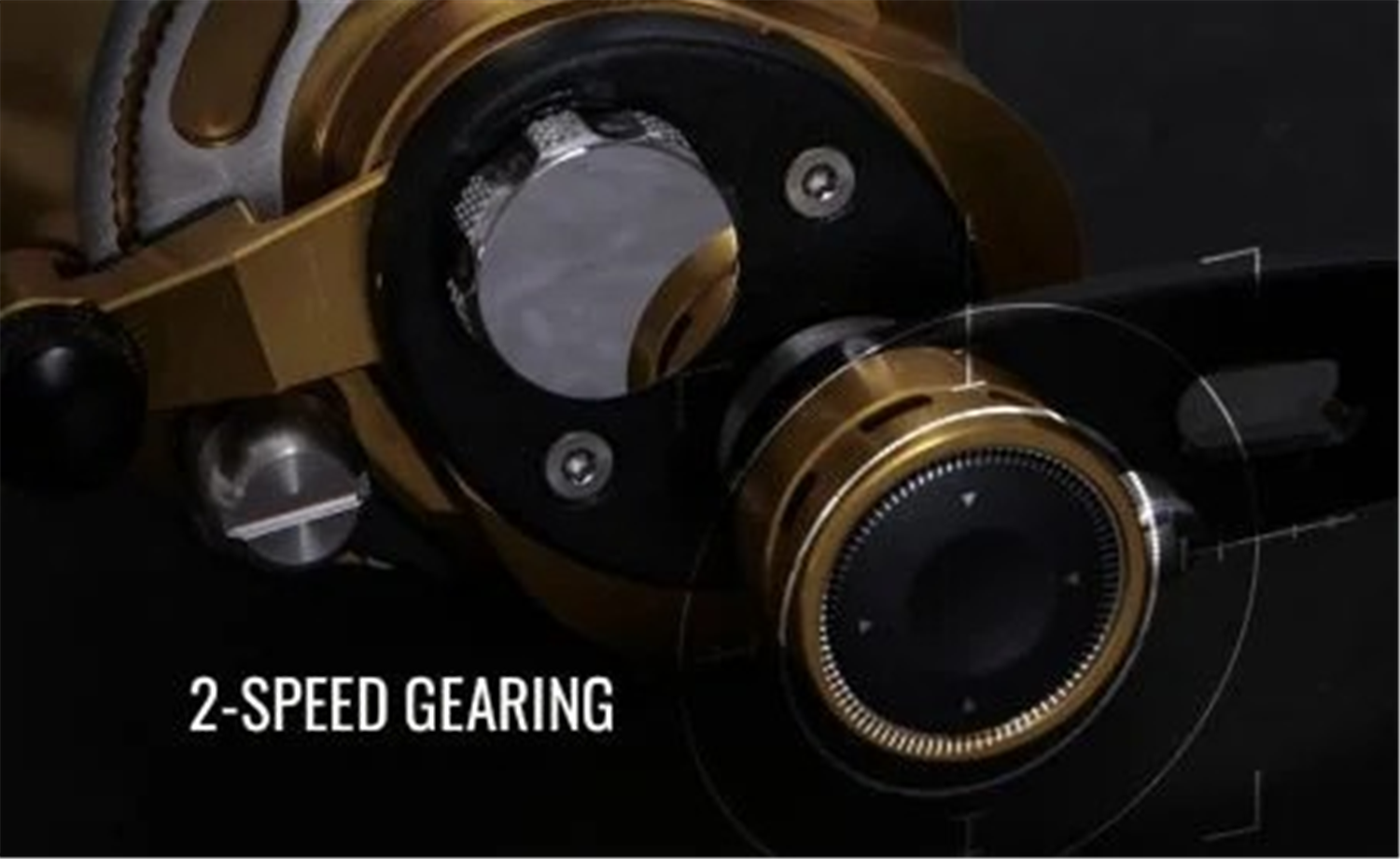

- Makaira reels all feature two-speed gearing systems
- Cold forged, Type-II anodized, machined aluminum spool
- CRC: Corrosion Resistant Coating process
- Patented spool pin system for use with braided or mono lines

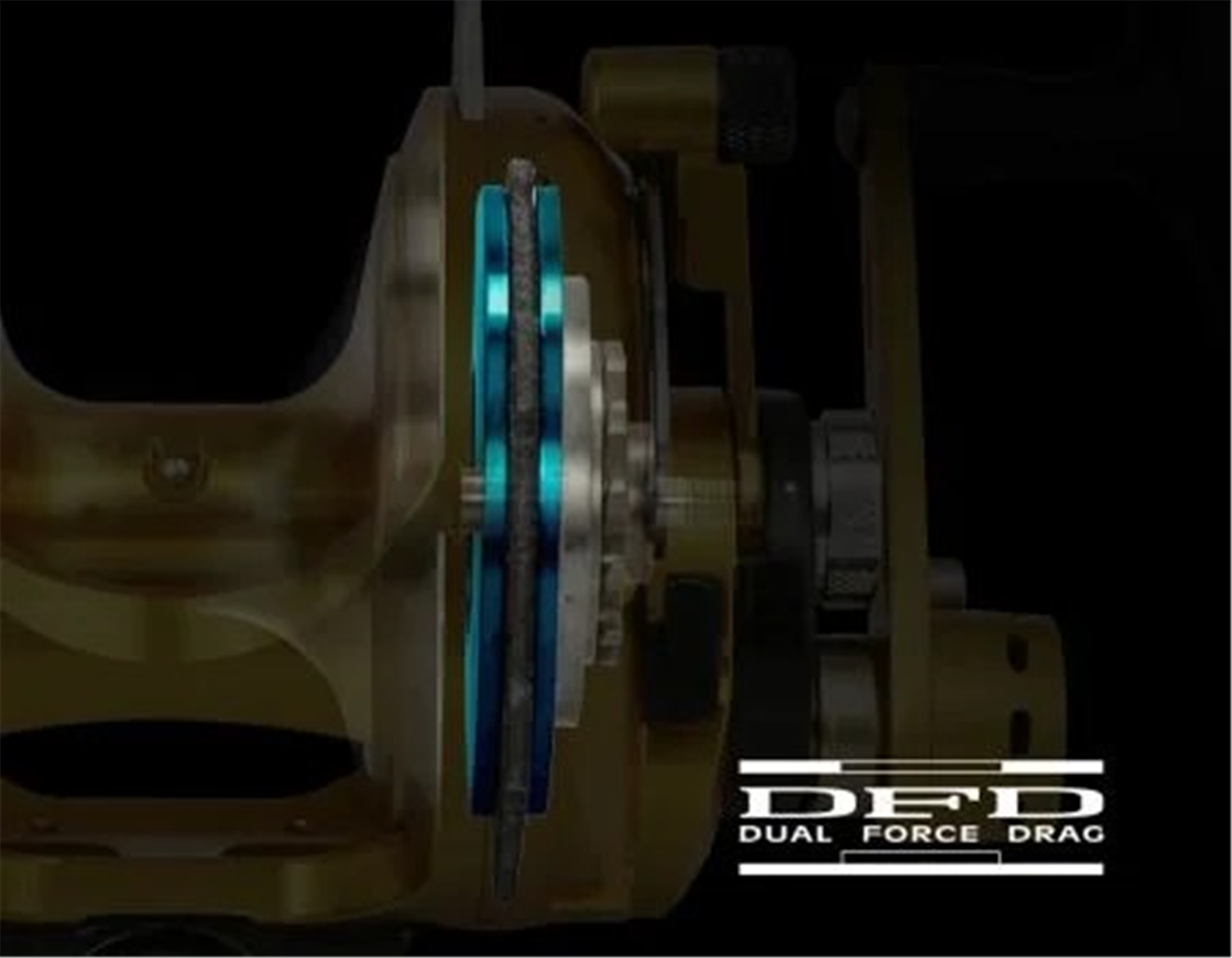

- Carbonite Dual Force drag system featuring Cal’s universal drag grease
- Custom designed thrust bearing: Alleviates side load on heavy drag settings
- 4-pcs ABEC-5 precision Sapporo stainless steel ball bearings
- Double-dog, proprietary silent anti-reverse system

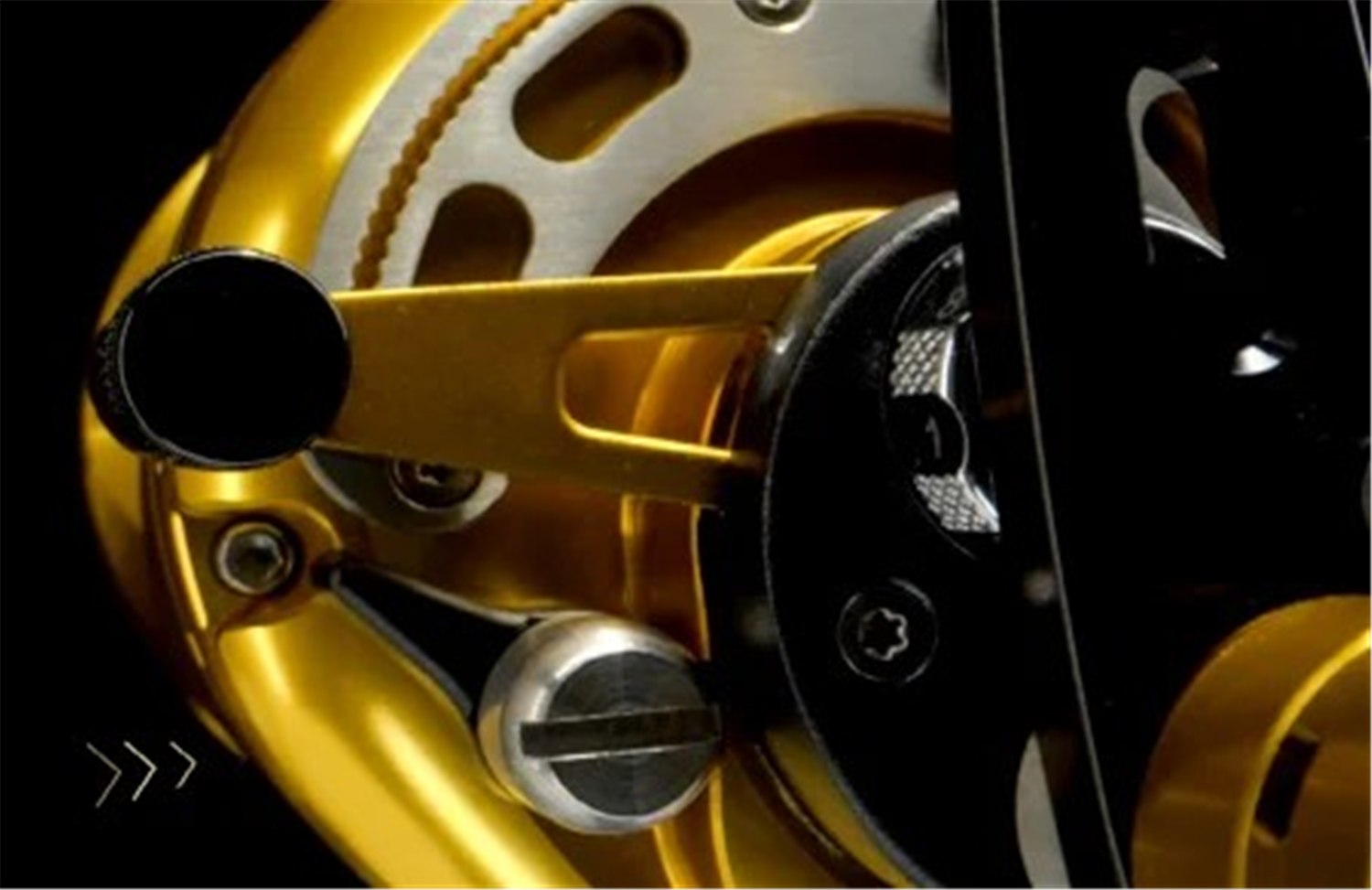

- Ratcheting drag lever & pre-set knob for precise drag setting
- Patented T-Bar handle with Easy Roll graphite insert on all models
- Heavy duty stainless steel ratcheting clicker system
- Heavy duty, 17-4 grade stainless steel drive & spool shafts
- Type-II gold anodized frame, sideplates, spool, drag lever & handle
- Open top frame design on 10II, 15TII,16II, 20II, 30II & 50II
- Lug & plug system on all open top reel models
- Machined thumb rest on rear cross bar for improved ergonomics
- Forged aluminum full hard anodized reel foot & reel clamp
- Precision placement of drain holes maximizes water removal from reel
- Special screw ports around sideplate screws reduces water/corrosion buildup
- Frames have been machined out for increased clearance between spool and cross bars
SPECIFICATION
MAKAIRA SEA GOLD LEVER DRAG REEL
| MODEL | GEAR RATIO | BEARINGS | WEIGHT (G) | LINE RETRIEVE(CM) | MAX DRAG @ STRIKE WITH FREESPOOL (KG) | MAX DRAG @ FULL WITH FREESPOOL (KG) | BRAID LINE CAPACITY | MONO LINE CAPACITY |
| MK-30IISEa-GOLD | 3.8:1 & 1.3:1 | 4BB + 1TB | 1,417 | 100.1 & 33.5 | 16.8 | 25 | LBS/YDS: 50/1770, 65/1420, 80/1370 φmm/M: 0.36/1620, 0.41/1300, 0.44/1260 |
LBS/YDS: 30/850, 40/700, 50/550 φmm/M: 0.55/770, 0.60/640, 0.70/500 |
| MK-50IISEa-GOLD | 3.2:1 & 1.0:1 | 4BB + 1TB | 1,707 | 96 & 30.2 | 27.2 | 39 | LBS/YDS: 80/1420, 100/1100, 150/660 φmm/M: 0.44/1300, 0.49/1000, 0.7/600 |
LBS/YDS: 30/1000, 50/650, 80/400 φmm/M: 0.55/910, 0.70/590, 0.90/360 |
| MK-50WIISEa-GOLD | 3.2:1 & 1.0:1 | 4BB + 1TB | 1,843 | 96 & 30.2 | 27.2 | 39 | LBS/YDS: 80/1880, 100/1680, 150/970 φmm/M: 0.44/1720, 0.49/1540, 0.7/890 |
LBS/YDS: 50/900, 60/780, 80/560 φmm/M: 0.70/820, 0.75/710, 0.90/510 |
| MK-80WIISEa-GOLD | 3.1:1 & 1.2:1 | 6BB + 1TB | 3,289 | 116.1 & 52.1 | 32.1 | 45.4 | LBS/YDS: 100/3400, 150/2150, 200/1400 φmm/M: 0.49/2900, 0.7/1350, 0.85/850 |
LBS/YDS: 80/1000, 100/850, 130/660 φmm/M: 0.90/910, 1.0/770, 1.12/600 |
| MK-130IISEa-GOLD | 2.2:1 & 1.2:1 | 6BB + 1TB | 4,750 | 100.8 & 55.1 | 34.1 | 45.4 | LBS/YDS: 150/2600, 200/2070, 250/1900 φmm/M: 0.70/2390, 0.85/1900, 0.95/1740 |
LBS/YDS: 80/1570, 100/1270, 130/1000 φmm/M: 0.90/1450, 1.0/1170, 1.12/920 |
